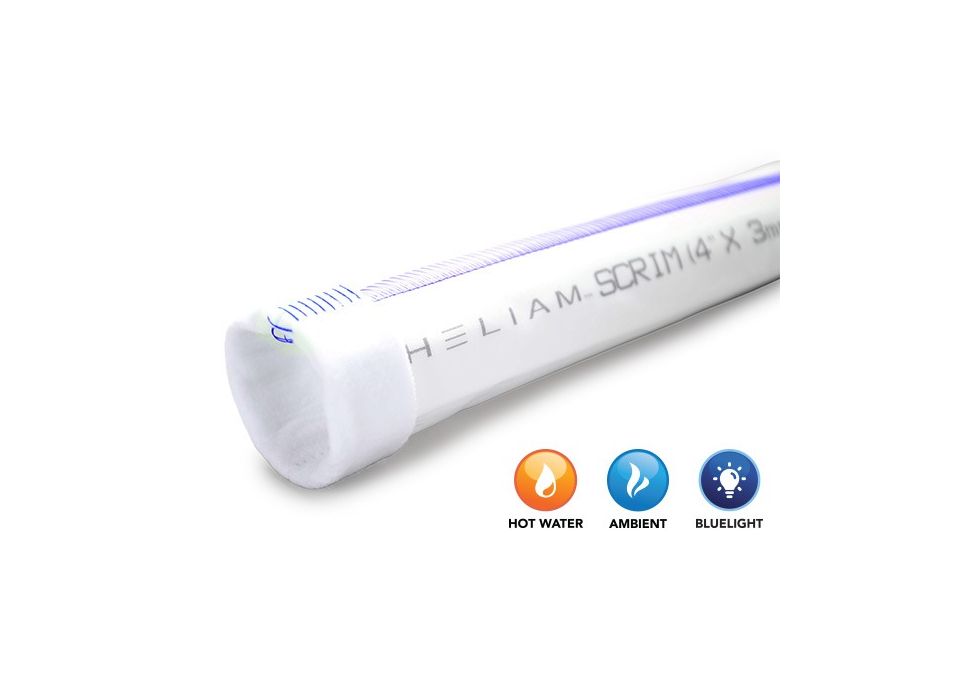

5.75" (3MM) HELIAM SCRIM, 165'

HELIAM® Scrim Liner — The Most Versatile All-Cure Scrim Liner on the Market

The HammerHead® HELIAM® Scrim Liner is a scrim-reinforced felt liner engineered to minimize longitudinal stretch and deliver accurate, reliable inversion lengths — so crews can hit their exact mark without overshooting into the main or needing to remove excess liner. Made in the USA at HammerHead's Wisconsin-based facility, HELIAM is the company's flagship liner product and the backbone of any well-stocked CIPP operation. The name says it all — HEat, LIght, and AMbient — reflecting its compatibility with all three CIPP curing methodologies, including hot water, steam, Bluelight® LED, and ambient curing. HELIAM also requires lower inversion pressure than standard liners, making it easier to invert on-site. Available in six diameter sizes from 3" to 8", with a 5¾" option specifically designed for 6" undersized cast-iron and clay pipe. All sizes are offered in full (330') and half (165') rolls in both dry and pre-wet-out options. Tested and certified to meet ASTM F1216 and compliant with UPC, IPC, NSF14, IAPMO, and ICC-ES installation standards.

Key Features

• Minimizes Longitudinal Stretch — Scrim reinforcement prevents overshooting, delivering precise, repeatable inversion lengths every time
• All-Cure Compatibility — Works with hot water, steam, Bluelight® LED, and ambient curing methods — one liner for every job
• Lower Inversion Pressure Required — Easier to invert on-site compared to standard liners, reducing effort and improving crew efficiency
• 3"–8" Diameter Range — Available in 3", 4", 5", 6", and 8" with a 5¾" option for undersized 6" cast-iron and clay pipe
• Two Thickness Options — 3-mil for 3"–6" sizes and 4.5-mil for 6"–8" sizes to match pipe diameter and structural requirements
• Full & Half Rolls — Every size available in 330' full rolls and 165' half rolls for flexible ordering
• Made in the USA — Manufactured at HammerHead's Wisconsin-based facility with rigorous quality standards
• Industry Certified — Tested and certified to ASTM F1216, compliant with UPC, IPC, NSF14, IAPMO, and ICC-ES
