BLUELIGHT FLEX LED LINER

HH Bluelight® Flex LED Liner — Maximum Flexibility for Complex Lateral Installations

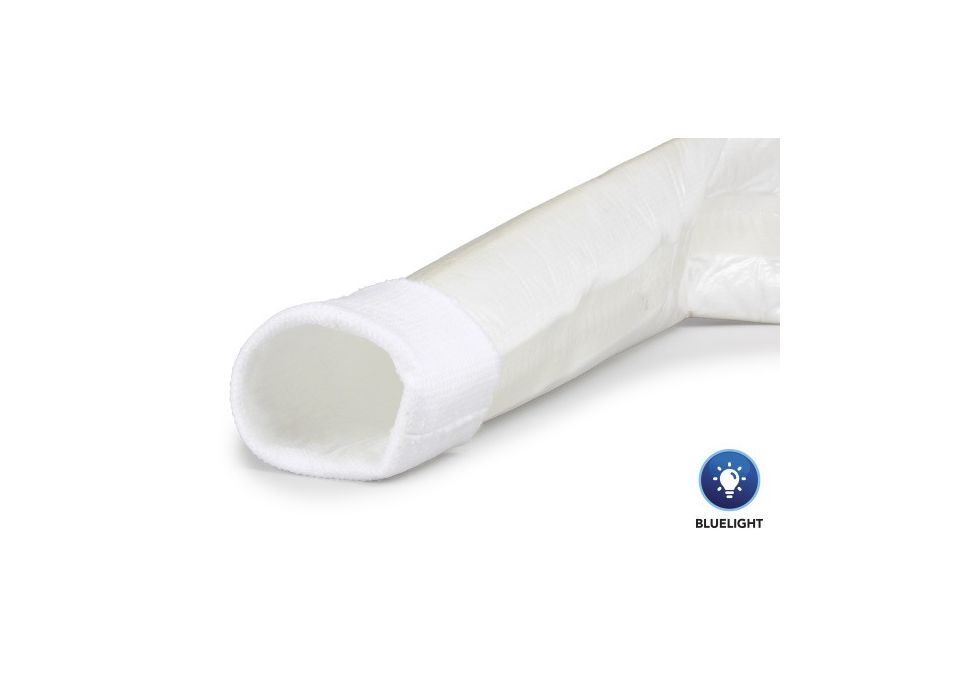

The HH Bluelight® Flex LED Liner is a high-performance, flexible CIPP liner engineered specifically for use with HammerHead’s Bluelight® LED single-component resin system. Constructed from a synthetic polyester fiber hose with a durable translucent TPU coating, this liner is designed to deliver consistent wet-out, reduce wrinkling, and maintain structural integrity throughout installation. Its flexible construction allows it to navigate straight runs, multiple bends up to 90°, and single diameter transitions (3"–4", 4"–6", and 6"–8"), making it a go-to solution for more demanding lateral rehabilitation applications. Available in 2", 3", 4", and 6" diameters, the liner is offered in full rolls, with the 2" size available in half rolls, providing crews with the length, flexibility, and performance needed to complete installs efficiently and reliably.

Key Features

• Flexible TPU-Coated Construction — Synthetic polyester fiber liner with a translucent TPU film designed for strength and consistent wet-out performance
• Designed for Bluelight® LED Systems — Optimized exclusively for use with HammerHead’s single-component light-initiated resin system
• Handles 90° Bends — Flexible construction allows installation through straight runs and multiple bends up to 90°
• Supports Diameter Transitions — Capable of single transitions including 3"–4", 4"–6", and 6"–8" configurations
• Minimizes Wrinkling — Engineered to conform to host pipe conditions while reducing install-related imperfections
• Full Roll Length Options — 3", 4", and 6" sizes available in full rolls, with 2" available in half rolls
• Available Sizes — Offered in 2", 3", 4", and 6" diameters to cover a wide range of lateral applications

Length Tolerance Notice:

Rolls are supplied at a nominal length of 100 m; however, actual lengths may vary within standard manufacturing tolerances. This variation is standard and does not affect product performance. For project planning, appropriate material allowances should be considered.
