HELIAM SCRIM LINER, PRE-WET OUT
NOTE: PRE-WET CUSTOM LINERS SHIP WITHIN 2-3 BUSINESS DAYS OF ORDER PLACED.

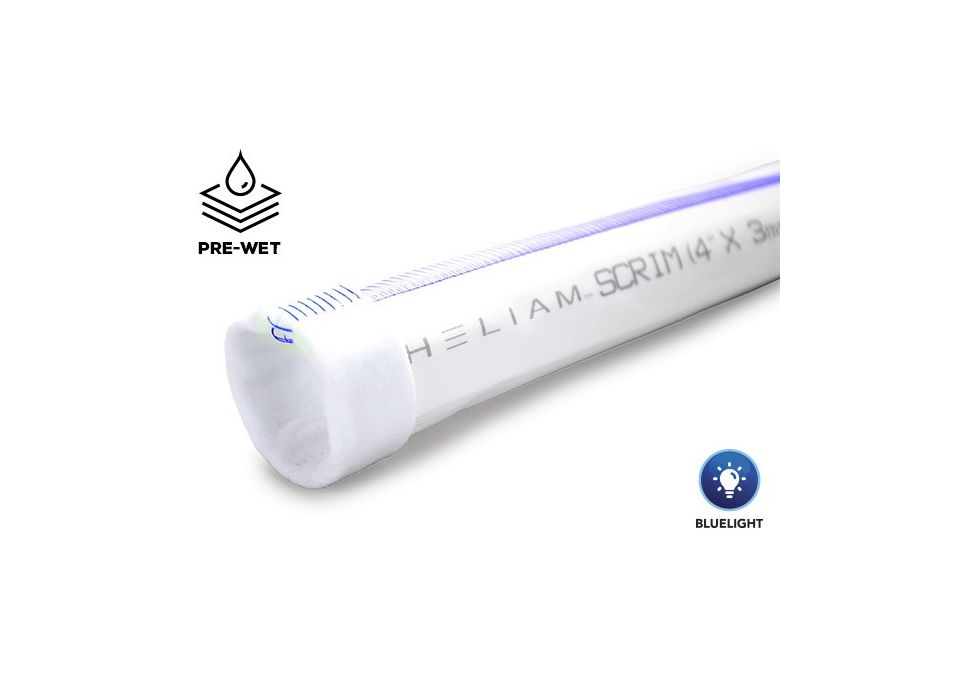

HELIAM® Scrim Pre-Wet-Out Liner with Bluelight® LED Resin — Ready-to-Install Performance with All-Cure Precision
The HELIAM® Scrim Pre-Wet-Out Liner combines HammerHead’s flagship scrim-reinforced felt liner with a factory-saturated Bluelight® LED single-component resin system, delivering a controlled, jobsite-ready solution for consistent CIPP installations. Engineered to minimize longitudinal stretch, HELIAM ensures accurate inversion lengths while the pre-wet-out resin system is precisely applied to support uniform saturation and reliable cure performance. Designed specifically for use with Bluelight® LED curing technology, this liner eliminates on-site resin wet out, reducing variability and improving efficiency in the wet-out process. The result is a streamlined installation workflow with predictable results from inversion through final cure. Available in 3", 4", 5", 5.75", and 6" diameters in both 165' half rolls and 330' full rolls to match job requirements.
Key Features
- Factory Pre-Wet-Out Construction — Eliminates on-site resin wet out, reducing variability and improving jobsite efficiency
- HELIAM® Scrim Reinforced Liner — Minimizes longitudinal stretch for accurate inversion lengths and repeatable installs
- Bluelight® LED Resin System — Single-component resin designed specifically for light-initiated curing applications
- Consistent Resin Saturation — Controlled wet-out process ensures uniform resin distribution throughout the liner
- Optimized for Bluelight® Curing — Designed to pair with HammerHead Bluelight® LED systems for efficient installs
- Available in 3"–6" Sizes — Offered in 3", 4", 5", 5.75", and 6" diameters to support a range of lateral applications
- Half & Full Rolls — Available in 165' half rolls and 330' full rolls for flexibility based on job length
- Improved Jobsite Productivity — Reduces setup time and simplifies installation workflow from wet-out through cure
- Reliable, Repeatable Results — Engineered system approach supports predictable curing performance and liner quality
| Heliam Pre-Wet Options | Curing Method | Liner Type | Liner Size |
|---|---|---|---|
| 3.00" (3MM), 165' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 3" (3MM) |
| 3.00" (3MM), 330' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 3" (3MM) |
| 4.00" (3MM), 165' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 4" (3MM) |
| 4.00" (3MM), 330' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 4" (3MM) |
| 5.00" (3MM), 165' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 5" (3MM) |
| 5.00" (3MM), 330' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 5" (3MM) |
| 5.75" (3MM), 165' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 5.75" (3MM) |
| 5.75" (3MM), 330' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 5.75" (3MM) |
| 6.00" (3MM), 165' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 6" (3MM) |
| 6.00" (3MM), 330' | BlueLight LED | HELIAM Scrim, Pre-wet liner | 6" (3MM) |
