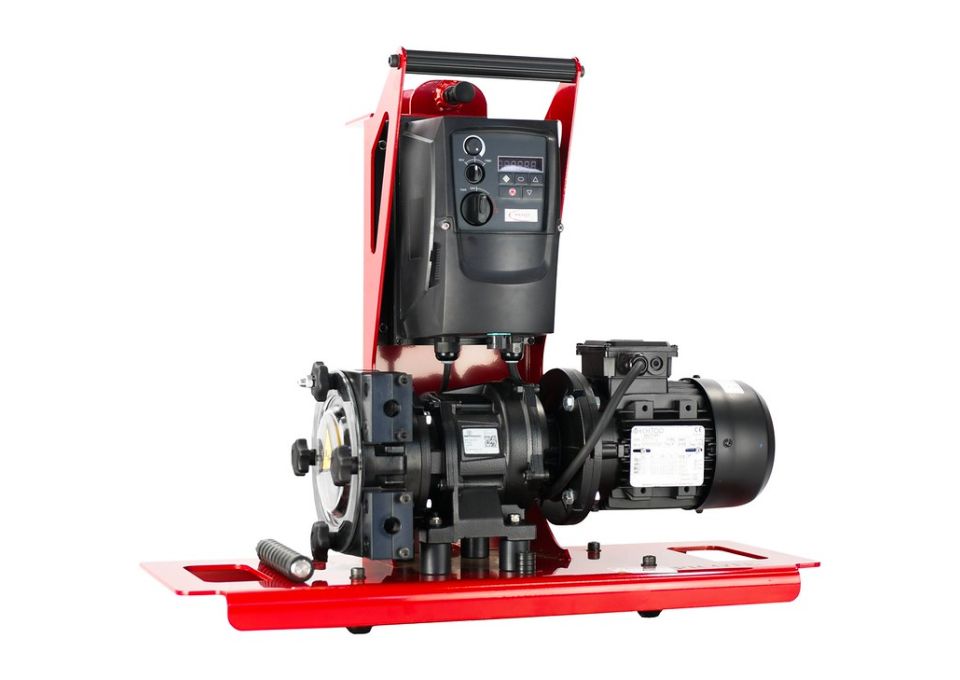

PICOTE MAXI COATING PUMP
High‑Capacity Epoxy Delivery for Medium‑ to Large‑Diameter Pipe Rehabilitation
The Picote Maxi Coating Pump is a high‑capacity, professional‑grade epoxy delivery system engineered for applying Picote’s 100% Solids Epoxy inside 3–12" pipelines. Built for demanding commercial, municipal, and industrial rehabilitation projects, the Maxi Coating Pump provides steady material flow, accurate mixing, and smooth, controlled application over long distances—up to 128 ft per run. Its robust construction supports continuous operation, while its compatibility with Picote’s full range of coating brushes ensures uniform coverage and strong adhesion across a variety of pipe materials. For contractors who need reliable performance on large‑scale coating jobs, the Maxi Coating Pump delivers efficiency, precision, and durability.
Key Features
- High‑capacity epoxy delivery for large‑scale rehabilitation
- Optimized for Picote 100% Solids Epoxy (dual‑component system)
- Designed for 3–12" pipe diameters
- Supports coating distances up to 128 ft
- Provides steady, controlled flow for consistent coating thickness
- Compatible with Picote Maxi Cleaner and full brush range
- Ensures accurate mixing and uniform application over long pipe runs
- Heavy‑duty construction for commercial, municipal, and industrial environments
Ideal Applications
- Coating medium‑ to large‑diameter pipelines (3–12")
- Long‑distance epoxy application up to 128 ft
- Commercial, municipal, and industrial pipe rehabilitation
- Restoring cast iron, clay, PVC, and concrete pipes
- Multi‑coat structural lining requiring high‑volume, continuous delivery
| Manufacturer SKU | 2220200001 |
|---|---|
| Coating System | Picote Maxi Coating Pump |
| Pipe Diameter | 3.00", 4.00", 5.00", 6.00", 8.00", 10.00" |
| Max. Range – FT (M) | 128 (39) |
| Power | 120 V, 15 AMP |
| Output Power | 0.25 kW |
| Rig Size L/W/H – IN (M) | 26 X 16.9 X 21.7 (0.66 X 0.43 X 0.55) |
| Weight – LB (KG) | 51 (23) |
