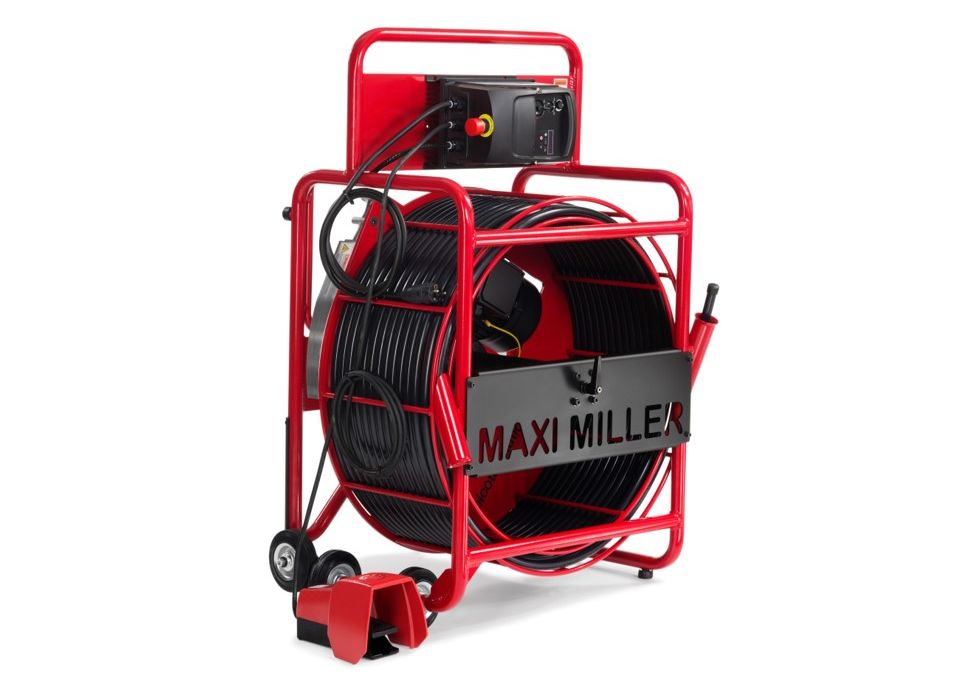

PICOTE MAXI MILLER, 1/2" SHAFT X 100FT
High‑Torque Cleaning, Descaling & Reinstatement for 3–10" Pipe, Brush Coating up to 12"
The Picote Maxi Miller is a high‑speed, high‑torque powerhouse built for demanding rehabilitation work in 3–10" pipelines, with the capability to perform Brush Coating™ in 3–12" pipe. It is the most versatile and heavy‑duty miller in the Picote lineup, designed for long runs, tough materials, and high‑productivity cutting and cleaning tasks.
Equipped with a 12 mm (½") thick‑cased shaft, the Maxi Miller delivers the strength required for removing concrete, failed CIPP liners, heavy scale, and intrusive connections while still offering the flexibility to navigate bends. With a standard 100 ft (30 m) reach and optional extensions, it is ideal for residential, commercial, and industrial rehabilitation projects where long distances and severe obstructions are common.
The Maxi Miller supports the full range of Picote cutting chains, Twisters, specialty drill heads, and Brush Coating™ accessories, making it a multi‑purpose solution for contractors who need maximum capability from a single machine.
Key Features
- High‑speed operation from 500–1475 RPM for aggressive cleaning and cutting
- Standard 100 ft (30 m) reach with optional 32–50 ft extensions depending on model
- Thick‑cased ½" shaft for maximum torque and durability
- Cleans and descales 3–10" pipe
- Performs cutting and reinstatement in 3–8" pipe
- Supports Brush Coating™ applications in 3–12" pipe
- Compatible with Picote Twisters, cleaning chains, specialty cutters, and coating systems
- Lightweight aluminum frame for easier transport and setup
- Designed for long runs and heavy‑duty material removal
Ideal Applications
- Heavy descaling in cast iron, clay, PVC, and concrete pipe
- Removing concrete, grout, or failed CIPP lining
- Root cutting and blockage removal
- Reinstating laterals and trimming overshot liner
- Removing intruding connections, displaced joints, or metal obstructions
- Preparing and applying Picote Brush Coating™ in 3–12" pipe
| Manufacturer SKU | 3560032012US |
|---|---|
| Cleaning/Descaling Pipe Sizes | 3.00", 4.00", 5.00", 6.00", 8.00", 10.00" |
| Cutting/Reinstatement Pipe Sizes | 3.00", 4.00", 5.00", 6.00", 8.00" |
| Brush Coating Pipe Sizes | 3.00", 4.00", 5.00", 6.00", 8.00", 10.00", 12.00" |
| Usable Shaft Length – FT (M) | 100 (30) |
| Shaft Extensions – FT (M) | 32 (10) |
| Shaft Size | 1/2" (12mm) Shaft |
| Speed | 500-1475 RPM |
| Power | 110/120V, 30AMP |
| Weight – LB (KG) | 196 (89) |
| Rig Size L/W/H – IN (M) | 45 X 34 X 19 (1.15 X 0.85 X 0.49) |
