PICOTE MIDI ROLLER

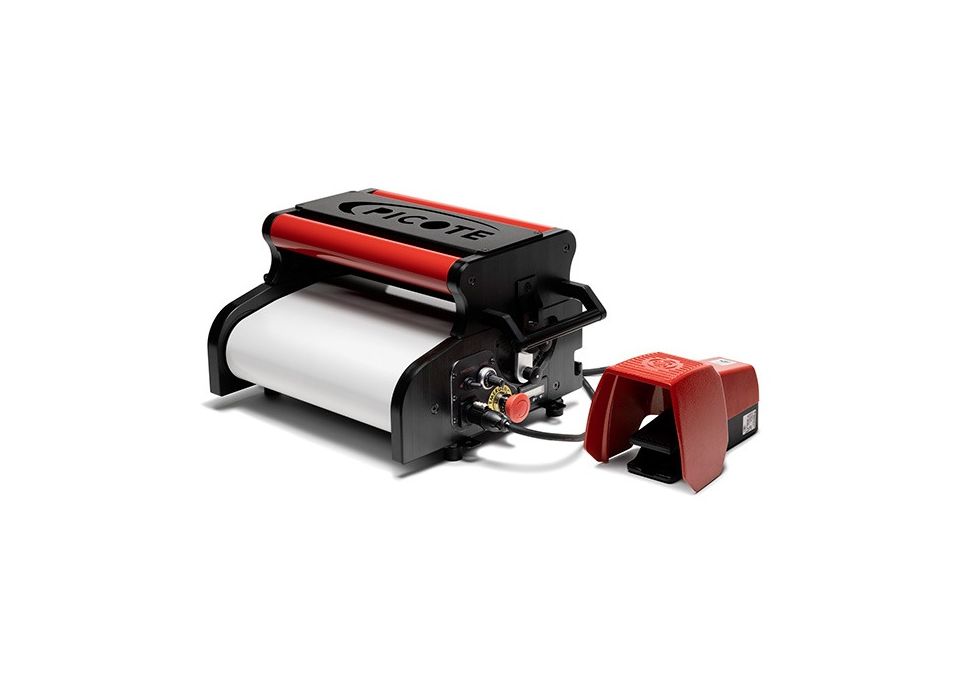

Picote Midi Roller — An Economical, Portable Wet-Out Solution for 2"–9" CIPP Liners

The Picote Midi Roller is an economical, compact, 110V-powered wet-out roller designed for fast, consistent resin saturation of 2"–9" CIPP liners. For crews looking for a budget-friendly entry point into powered wet-out, the Midi Roller delivers reliable performance at a fraction of the cost of a full-size wet-out table. Weighing just 40 lbs, it can be mounted on any work surface, making it easy to set up wherever the job takes you. Its variable speed and bi-directional controls give operators full command of the wet-out process, while the silicone belt surface and rubberized upper wheel work together to move the liner smoothly and evenly. The upper roller lifts up for faster liner loading, and the adjustable gapping system sets from 4mm to 14mm in 0.5mm increments to match a wide range of liner thicknesses. Each unit comes with a 4" Liner Holder that attaches directly to the roller, freeing up a pair of hands while pouring resin — with additional liner holder sizes available separately.

Key Features

• Economical Wet-Out Option — A cost-effective powered wet-out solution for crews looking to get started without the investment of a full-size table
• 110V Wall-Powered — Plugs into a standard 110V outlet for reliable, consistent power on any jobsite
• 2"–9" Liner Compatibility — Handles a wide range of CIPP liner diameters in a single, compact unit
• Variable Speed & Bi-Directional Controls — Full operator control over roller speed (9–29.5 ft/min) and direction for precise wet-out
• Adjustable Gapping — Set from 4mm to 14mm in 0.5mm increments to match liner thickness without shims or guesswork
• Silicone Belt & Rubberized Upper Wheel — Smooth, even liner movement with reduced slipping and bunching
• Lift-Up Upper Roller — Raises for fast liner loading and unloading, speeding up the wet-out cycle
• Includes 4" Liner Holder — Attaches to the roller to secure the liner while pouring resin — additional sizes available separately
• Ultra-Portable — Just 40 lbs and 14.2" x 19.1" x 10.4" — mounts on any work surface for flexible jobsite setup
