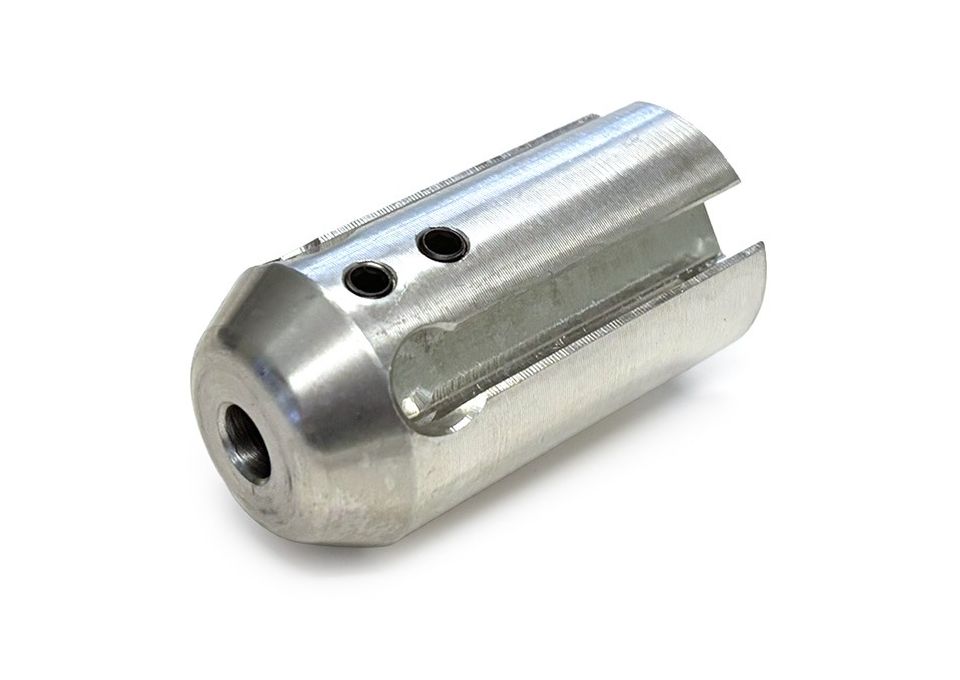

PICOTE SMART HUB, 1/3" SHAFT
Picote Smart Cutter Hubs for 1/3" Shaft — Foundational Control for Precision Pipe Work
Picote Smart Cutter Hubs for 1/3" shaft systems form the foundation of the Smart Cutter assembly, providing the core structure for mounting and operating grinding and polishing panels. Designed for use in pipe diameters ranging from 2" to 4", these hubs enable precise, controlled cleaning, preparation, and reinstatement within small to mid-size pipe applications.
The hub acts as the central mounting point where Side Grinding Panels or Polishing Panels are attached, while a corresponding hub disc locks the panels securely into place. As the shaft rotates, the mounted panels expand outward against the pipe wall, delivering consistent 360° contact for efficient and uniform surface treatment.
Engineered for compatibility and flexibility, these hubs are available in multiple sizes to match specific pipe diameters and applications. Proper hub and panel selection ensures balanced operation and optimal performance when cleaning, opening laterals, or preparing pipe surfaces in trenchless rehabilitation workflows.
Consult the Smart Cutter Selection Guide to match the correct hub to your panel and hub discs.
| Hubs, 1/3" Shaft | Manufacturer SKU | Shaft Size | Pipe Diameter | Smart Cutter Components |
|---|---|---|---|---|
| HUB, 1.57” FOR 2” PIPE | 1000820040 | 1/3" (8mm) Shaft | 2.00" | Hubs |
| HUB, 2.36” NARROW FOR 2-3” PIPE | 1000820060 | 1/3" (8mm) Shaft | 3.00", 3.50", 4.00" | Hubs |
| HUB, 2” NARROW 2W FOR 3” PIPE | 1000820050 | 1/3" (8mm) Shaft | 3.00" | Hubs |
| HUB, 3” SHORT FOR 3-4” PIPE | 1000835050A | 1/3" (8mm) Shaft | 3.00", 3.50", 4.00" | Hubs |
| HUB, 3” NARROW 2W FOR 4” PIPE | 1000820075 | 1/3" (8mm) Shaft | 4.00" | Hubs |
