SPECIAL DRILL HEAD PVC CUTTERS

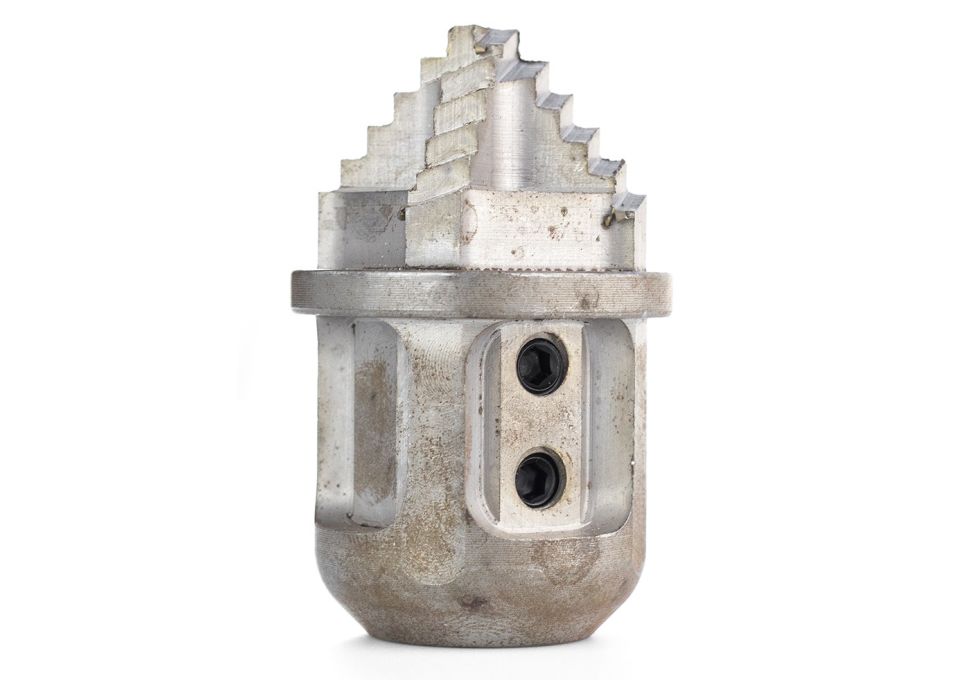

Picote Special Drill Head PVC Cutter — Controlled Cutting for Fragile Pipe Applications
The Picote Special Drill Head PVC Cutter is designed for safe and controlled penetration in pipes where material sensitivity is a concern. As part of the Special Drill Head range, it is used to create initial openings in blockages and lined connections while minimizing the risk of damage to PVC, clay, and lined pipe systems.
This drill head features a protective design that allows for more controlled cutting compared to aggressive alternatives, making it ideal for delicate environments. It is commonly used to establish access through obstructions, enabling follow-up cleaning chains or reinstatement tools to operate effectively. Built for precision and reliability, the PVC Cutter supports efficient trenchless workflows where maintaining pipe integrity is critical.
Key Features
- Designed for controlled cutting in PVC, clay, and lined pipes
- Reduces risk of pipe damage during penetration and opening
- Used to create initial access through blockages and lined connections
- Enables follow-up tools to perform cleaning and reinstatement more effectively
- Ideal for sensitive pipe materials where aggressive cutting is not suitable
- Supports efficient and controlled trenchless workflow
| Special Drill Head PVC Cutters | Manufacturer SKU | Shaft Size | Pipe Diameter |
|---|---|---|---|
| 1.25-1.5" PVC PIPE, 1/3" SHAFT | 1310812029 | 1/3" (8mm) Shaft | 1.25", 1.50" |
| 2" PVC PIPE, 1/3" SHAFT | 1310812042 | 1/3" (8mm) Shaft | 2.00" |
| 2-3" PVC PIPE, 1/3" SHAFT | 1310813055 | 1/3" (8mm) Shaft | 2.00", 2.50", 3.00" |
| 3" PVC PIPE, 1/2" SHAFT (1.2X2.2) | 1311213055 | 1/2" (12mm) Shaft | 3.00" |
| 3" PVC PIPE, 1/2" SHAFT (1.6X2.8) | 1311214071 | 1/2" (12mm) Shaft | 3.00" |
| 4" PVC PIPE, 1/2" SHAFT | 1311215091 | 1/2" (12mm) Shaft | 3.00", 3.50", 4.00" |
