TIGER BORE DRILL HEAD CUTTERS

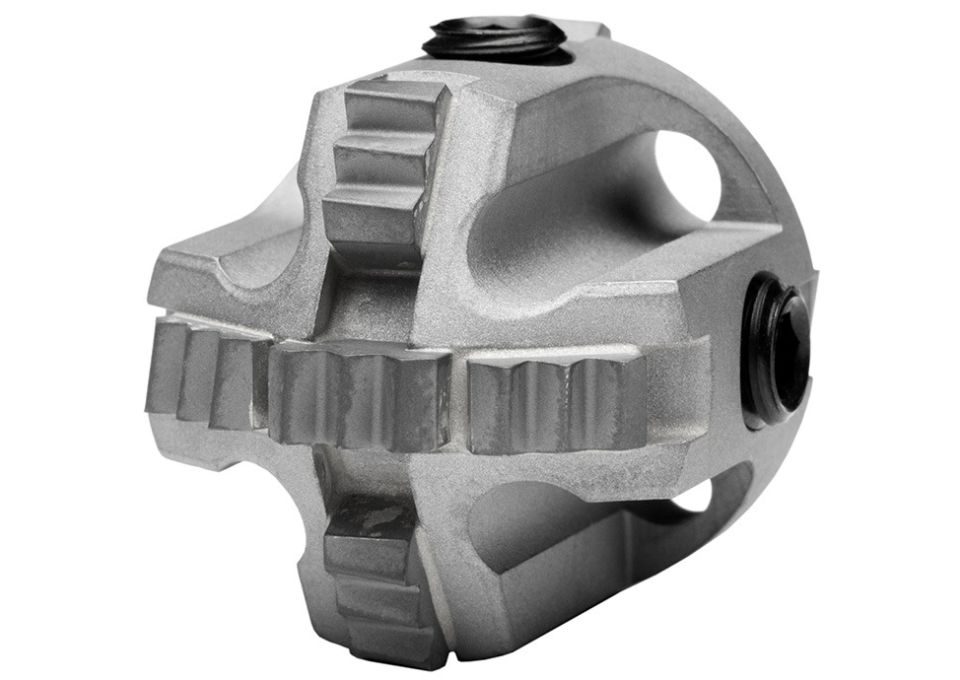

Picote Tiger Bore — Aggressive Penetration and Blockage Removal Drill Head
The Picote Tiger Bore is a high-performance drill head designed for aggressive penetration and efficient removal of tough blockages in pipe systems. Engineered as part of the Special Drill Head lineup, the Tiger Bore is used to cut through heavy obstructions such as scale, roots, grout, concrete, and collapsed liners, creating an initial opening for follow-up cleaning and reinstatement tools.
Commonly deployed at the front of cleaning assemblies, the Tiger Bore allows operators to break through difficult conditions where standard tools cannot advance. Its cutting design enables it to reopen lined connections and clear blocked sections, restoring access within the pipe and preparing the system for additional cleaning or rehabilitation processes. Built with durable carbide cutting elements, the Tiger Bore delivers consistent performance, long service life, and high efficiency across demanding trenchless applications.
Key Features
- Designed to cut through tough blockages including roots, scale, grout, and concrete
- Highly effective at reinstating lined CIPP connections
- Cuts through collapsed liners to create access for larger removal tools
- Enables initial penetration to allow follow-up cleaning tools to perform effectively
- Durable carbide construction for maximum efficiency, longevity, and cutting power
- Ideal for clearing blocked pipes and restoring flow in challenging conditions
| Tiger Bore Drill Head Cutters | Manufacturer SKU | Shaft Size | Pipe Diameter |
|---|---|---|---|
| 2-3" PIPE, 1/3" SHAFT | 1261084040 | 1/3" (8mm) Shaft | 2.00", 2.50", 3.00" |
| 3" PIPE, 3/8" SHAFT | 1261010030 | 3/8" (10mm) Shaft | 3.00" |
| 3-4" PIPE, 3/8" SHAFT | 1261010050 | 3/8" (10mm) Shaft | 3.00", 3.50", 4.00" |
| 3-4" PIPE, 1/2" SHAFT | 1261125050 | 1/2" (12mm) Shaft | 3.00", 3.50", 4.00" |
