WT212-3D, WET OUT TABLE

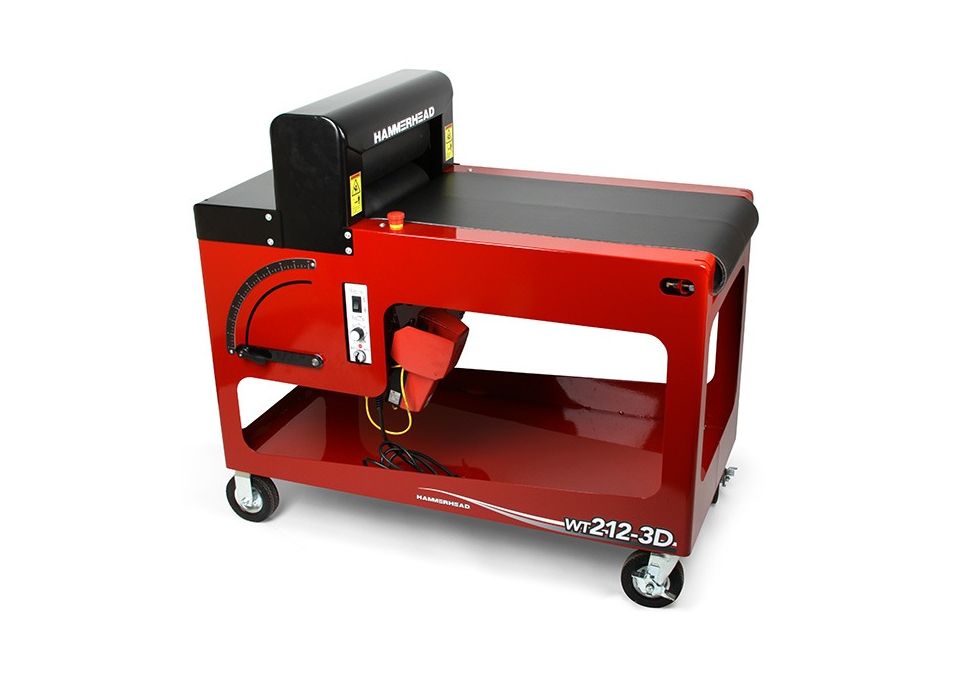

WT212-3D Wet-Out Table — Automated Precision for Consistent, Repeatable CIPP Liner Wet-Outs
The HammerHead® WT212-3D Wet-Out Table delivers superior wet-out accuracy through a design unlike any other in the industry. Instead of pinching a liner through hand-cranked rollers, the WT212-3D automates the wet-out process with a 3-drive roller system ("3D") that synchronizes the belt and rollers to move the liner effortlessly — producing a uniform, consistent wet-out while reducing or eliminating wrinkling. Gap height is controlled with an innovative dial-adjusted cam-lock system that can be set anywhere from 2mm to 15mm, down to the quarter-millimeter — no more shims, no more guesswork. The cam-lock design and robust frame ensure the roller locks into place exactly where you set it, eliminating the inconsistent flexing found in other designs. The WT212-3D works with any liner 2" to 12" in diameter — any material, any resin, any manufacturer — making it the most versatile wet-out table on the market. Its self-centering belt reduces wear and maintenance, while the built-in bottom shelf and all-terrain wheeled frame double as a mobile lining cart for added jobsite utility.
Key Features
- 3-Drive Roller System — Three synchronized drives power strategically placed rollers for a smooth, uniform wet-out with reduced or eliminated wrinkling
- Cam-Lock Gap Control — Infinitely adjustable dial sets gap height from 2mm to 15mm, down to the quarter-millimeter — no shims required
- Universal Liner Compatibility — Works with any liner 2"–12" in diameter — any material, any resin, any manufacturer
- Self-Centering Belt — Reduces wear, increases longevity, and lowers ongoing maintenance requirements
- Doubles as a Lining Cart — Built-in bottom shelf and all-terrain wheeled frame provide additional storage and mobile utility on the jobsite
- Stable, Durable Construction — Robust structural design eliminates the inconsistent flexing found in other wet-out systems
- Electric/Pneumatic Power — Roller speed adjustable from 0–25 ft/min with an optional roller table extension available
| Rig Size L/W/H – IN (M) | 56/27.5/45.3 (1.42/0.70/1.15) |
|---|---|
| Belt Height – IN (M) | 35 (0.89) |
| Weight – LB (KG) | 505 (229) |
| Liner Size Capacity – IN (MM) | 2–12 (50–300) |
| Roller Gap Range – IN (MM) | 0.08–0.60 (2–15) |
| Roller Gap Adjustment | .25 mm, infinitely adjustable |
| Roller Gap Settings | Pinch clamp |
| Roller Speed – FT/MIN (M/MIN) | 0–25 (0–7.6) |
| Powered Drives | 3 |
| Power | Electric/Pneumatic |
| Optional Accessories | Roller Table Extension |
