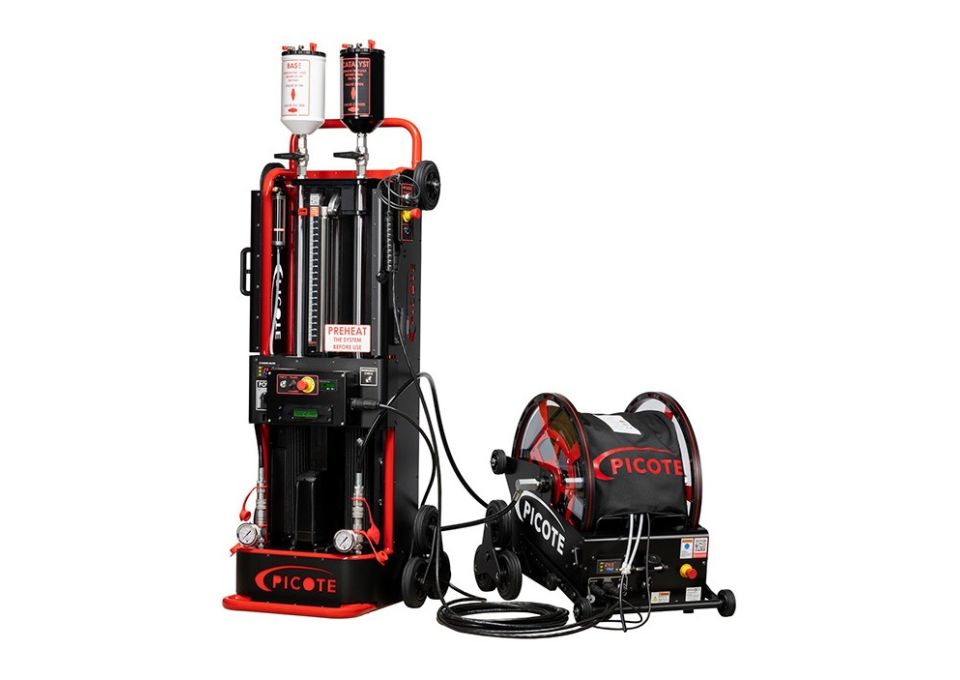

PICOTE XPRESS COATING SYSTEM 2.0, STANDARD REEL

Fast, Clean, Zero‑Waste Brush Coating for 1¼–12" Pipe

The Picote Xpress Coating System 2.0 with Standard Reel is a high‑performance brush‑coating platform designed for rapid, clean, and efficient trenchless pipe rehabilitation. Built for contractors who need consistent results with minimal setup time, the system delivers fast curing, controlled resin handling, and zero consumables waste. It is suitable for coating 1¼–12" pipelines in residential, commercial, and industrial environments.

At the core of the system is the Xpress Coating Pump 2.0, featuring dual hydraulic resin cylinders, internal resin heaters, and a long‑life integrated battery. The pump is optimized for Picote’s 1:1 ratio, 100% solids epoxy, which provides strong adhesion and fast return‑to‑service times.

The Standard Delivery Hose Reel provides 131 ft of hose capacity in a compact, motorized reel format. It improves mobility, simplifies setup, and keeps the hose organized for efficient operation—ideal for multi‑story buildings, long‑reach coating runs, and tight jobsite environments.

Key Features

• Coats 1¼–12" pipe using Picote’s 1:1 epoxy system
• 131 ft (40 m) motorized delivery hose reel for efficient deployment and retrieval
• Fast curing with short intervals between coats
• Applies 1 mm coating thickness per layer, reducing total coats required
• Zero‑waste static mixing at the brush head
• Internal resin heaters stabilize epoxy temperature during transport and operation
• Built‑in 24V battery provides extended runtime and can operate while charging
• Tri‑wheel stair climbers and a 32 ft remote for easy movement and control
• Includes small‑diameter hose packages for 1¼–2" and 2–3" pipe

Ideal Applications

• Brush Coating™ for residential, commercial, and industrial pipelines
• Restoring deteriorated cast iron, clay, PVC, and concrete pipe
• Multi‑story building stacks and long‑distance coating runs
• Jobsites where mobility and fast setup are essential
• Projects requiring minimal downtime and fast return‑to‑service

System Includes (Standard Reel Configuration)

• Xpress Coating Pump 2.0
• Standard motorized Delivery Hose Reel
• Small‑diameter hose package
• Flexible static mixing tips
• Quick‑connect multi‑use hoses
