D100-QR INVERSION DRUM
D100-QR Quick Release Inversion Drum — The Industry's Most Powerful Compact CIPP Inversion Drum

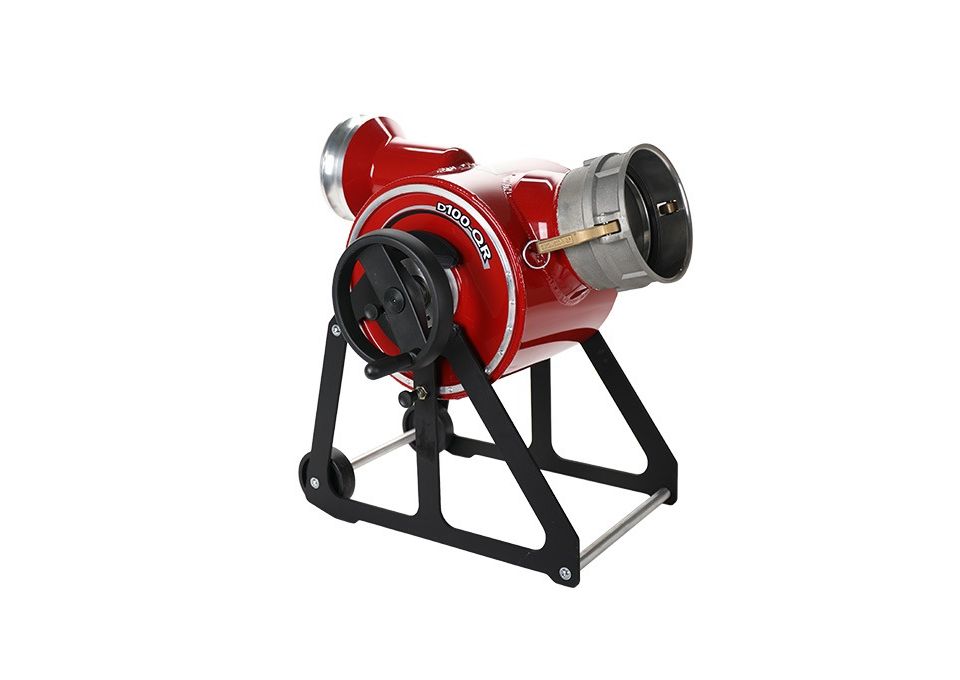

The HammerHead® D100-QR Quick Release Inversion Drum is the most powerful compact inversion drum in the lateral lining industry, delivering up to 30 psi (2 bar) in a lightweight, portable design that weighs just 34.8 lbs without the frame. Built for small-diameter CIPP lining jobs where space is tight and efficiency matters, the D100-QR makes it easy to load, set, and begin inverting with minimal setup time. Its patent-pending Quick Release design eliminates the need for a wye assembly during light-cure applications — simply connect the Bluelight propulsion unit directly to the drum and begin curing. With the ambient cure cap accessory, the drum also supports ambient curing, giving crews the flexibility to cure their way while maintaining the full 30 psi pressure rating. The dynamic, wheeled frame is fully removable and rotates for vertical positioning, allowing the drum to adapt to ever-changing jobsite conditions.
Key Features
- 30 PSI High-Pressure Rating — Delivers up to 30 psi (2 bar) for greater confidence inverting through long runs, small diameters, and difficult bends
- Patent-Pending Quick Release Design — Eliminates the need for a wye assembly during light-cure applications, allowing direct connection of the Bluelight propulsion unit to the drum
- Ultra-Lightweight & Portable — Weighs just 34.8 lbs (44 lbs with frame) for effortless mobility on any jobsite
- Dynamic Quick-Release Frame — Removable, wheeled frame with full rotation for vertical positioning or removal for confined space access
- Bluelight LED & Ambient Curing — Designed to pair with the Bluelight LED 064 2" system with an ambient cure cap accessory for maximum curing flexibility
- Compact 2" Camlock Nozzle System — Lightweight aluminum nozzle with a smaller footprint that enables full drum rotation and tackles vertical applications
- Multi-Diameter Capacity — Holds up to 100 ft of 2" liner, 59 ft of 3" liner, and 29 ft of 4" liner in both felt and Alphaduct fiberglass
| Rig Size L/W/H – IN (M) | 21.5/16.8/26.8 (0.55/0.43/0.68) |
|---|---|
| Weight – LB (KG) | 34.8 (15.8) with frame |
| Pipe Diameter | 2.00", 3.00", 4.00" |
| Service Window – IN (MM) | 5.4 (137) |
| Rotational Drum | Multi Position |
| Curing Method | Ambient, BlueLight LED |
| Connection Type | 6" Cam Lock (M) |
| Max Temperature – °F (°C) | 212 (100) |
| Max. Pressure – PSI (BAR) | 30 (2.1) |
| Drum Capacity | Refer to Technical Data Sheet |
