HEATWAVE HOT WATER CURING SYSTEM
HeatWave Hot-Water Curing System — All-in-One Boiler for Fast, Efficient CIPP Curing

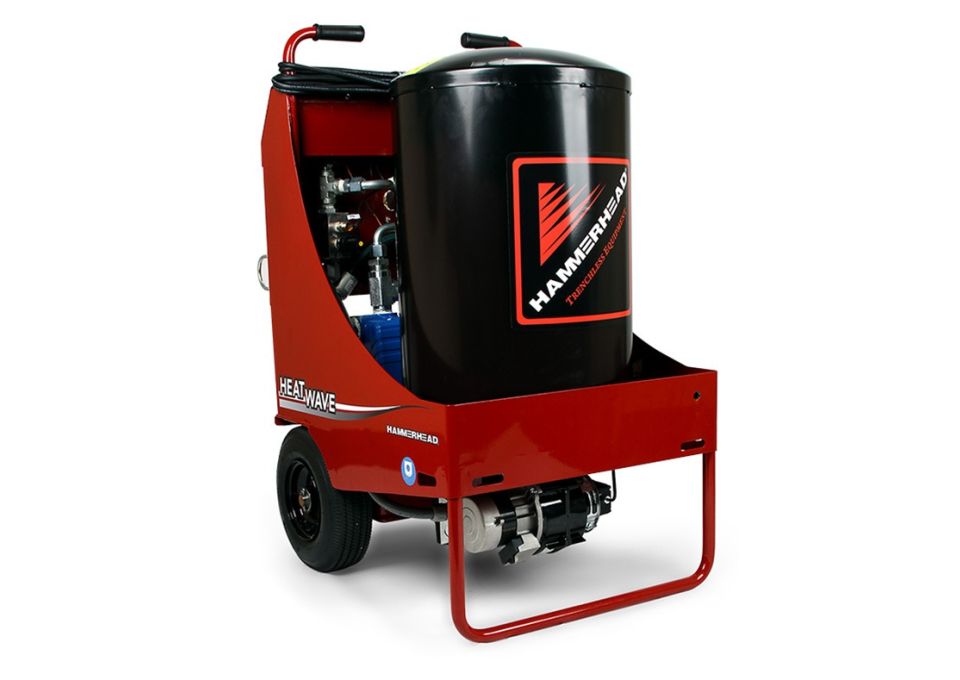

The HammerHead® HeatWave Hot-Water Curing System is an all-in-one hot-water curing unit that integrates the boiler, pump, and all controls into a single, compact package — eliminating the hassle of extra hoses, components, and cluttered worksites. Its optimized boiler coil and high-flow centrifugal pump deliver an 11 gpm recirculation rate with a max outlet temperature of 195°F (91°C), bringing water to temperature quickly and holding it uniformly throughout the full length of the run for precise, repeatable cures. Effective in pipes up to 12" in diameter, the HeatWave's 236,250 BTU diesel-fired boiler and 120V electric pump provide the power to fill calibration tubes faster and reach specified curing temperatures sooner than other models. All controls are centrally located with an onboard return temperature sensor for effortless monitoring and precision matching of curing schedules. An integrated bleed-off valve and clean-out port provide cold-weather protection for year-round operation. The HeatWave is the industry's only hot-water CIPP curing unit designed, constructed, and tested to U.S. and Canada safety standards, including applicable portions of UL 1776 and CAN/CSA 22.2 No. 68.
Key Features
- All-in-One Integrated Design — Boiler, pump, and controls in a single unit — fewer hoses, faster setup, and a smaller jobsite footprint
- High-Efficiency Recirculation — 11 gpm flow rate brings water to temperature quickly and maintains uniform heat throughout the cure
- 236,250 BTU Diesel-Fired Boiler — Powers through calibration tube fills up to 12" with a max outlet temperature of 195°F (91°C)
- Onboard Return Temperature Sensor — Effortless monitoring for precision matching of curing schedules without external gauges
- Centralized Controls — Switch from fill to recirculation mode with the flip of a lever — all controls in one place
- Cold-Weather Protected — Integrated bleed-off valve and clean-out port for winterizing the unit and year-round operation
- Compact & Portable — Just 32" x 26" x 45.5" at 405 lbs dry (440 lbs wet) — fits easily in a truck or tight workspace
- U.S. & Canada Safety Certified — The industry's only hot-water CIPP curing unit designed, constructed, and tested to UL 1776 and CAN/CSA 22.2 No. 68 standards
| Rig Size L/W/H – IN (M) | 32/26/45.5 (0.81/0.66/1.16) |
|---|---|
| Curing Method | Hot Water |
| Weight – LB (KG) | 405 (183.7) Dry, 440 (199.5) Wet |
| BTU | 236,250 |
| Flow Volume – GPM (LPM) | 11 (41.6) |
| Fuel Tank Capacity – GAL (L) | 5 (18.9) |
| Power | Electric/Diesel |
| Temperature Gauge | Integrated, Recirculated Water |
| Water Pump | Integrated |
| Pump Type | Centrifugal |
| Storage Clean Out Port | Integrated |
| Fill/Recirculation Valve | Integrated |
| Max. Outlet Temp. – °F (°C) | 195° (91°) |
| Max Temp Increase Per Cycle @ 11 GPM (41.6) LPM – °F (°C) | 43.5° (6.4°) |
