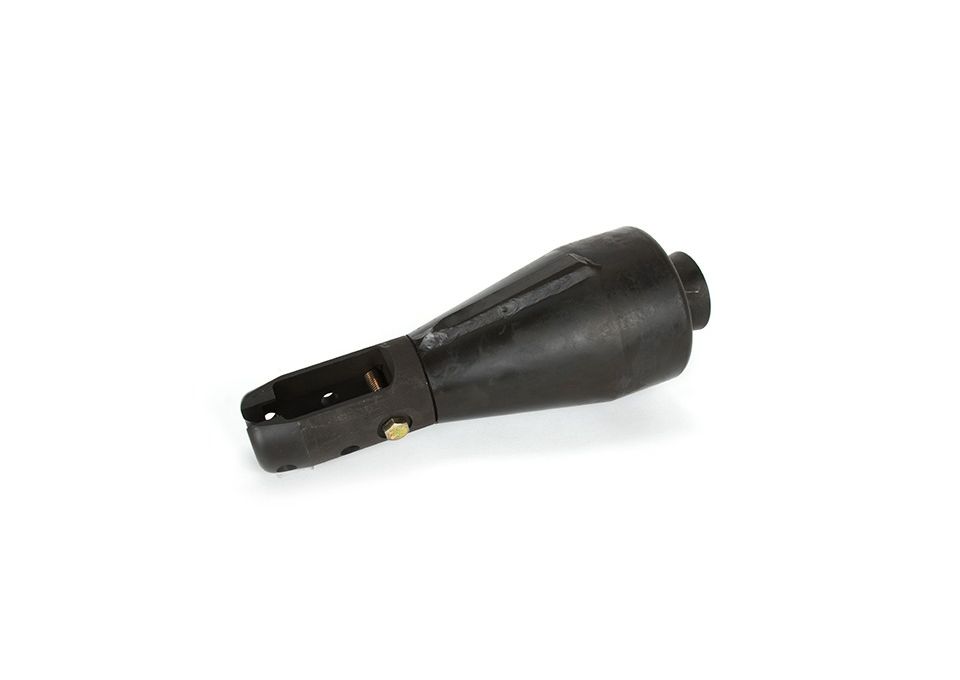

QUICK GRIP BURST HEAD, 4" DIPS, SDR 11-17 / 125MM
4" DIPS SDR 11–17 / 125 mm Quick Grip Burst Head for Demanding Lateral Replacement
The 4" DIPS SDR 11–17 / 125 mm Quick Grip Burst Head is a one‑piece, high‑strength tool engineered for efficient mid‑diameter lateral replacement using the PortaBurst pipe bursting system. Built around the proven HammerHead Quick Grip connection, this head is designed to burst or slit clay, concrete, Orangeburg, cast iron, fiberglass, AC, PVC, and HDPE pipe while pulling back 4" DIPS SDR 11–17 or 125 mm HDPE in a single, continuous process. For cast iron, PVC, and HDPE applications, the 912‑3370 slitter blade is required in addition to the burst head, providing the cutting action needed to maintain smooth, consistent progress through these tougher materials.
Key Features
- One‑piece Quick Grip burst head for 4" DIPS SDR 11–17 and 125 mm lateral replacement
- Bursts or slits clay, concrete, Orangeburg, cast iron, fiberglass, AC, PVC, and HDPE
- Pulls back 4" DIPS SDR 11–17 or 125 mm HDPE pipe during installation
- Compatible with the PortaBurst pipe bursting system
- 912‑3370 slitter blade required as an add‑on for cast iron, PVC, and HDPE applications
- Durable, high‑strength construction for consistent performance in varied ground conditions
| Quick Grip Burst Heads | 4.00" DIPS SDR 11-17 |
|---|---|
| Host Pipe Type | ACP, Cast Iron, Clay (VCP), Concrete, Fiberglass, HDPE, Orangeburg, PVC |
| New Pipe Type | HDPE |
| Pipe Diameter | 4.00", 125 MM |
