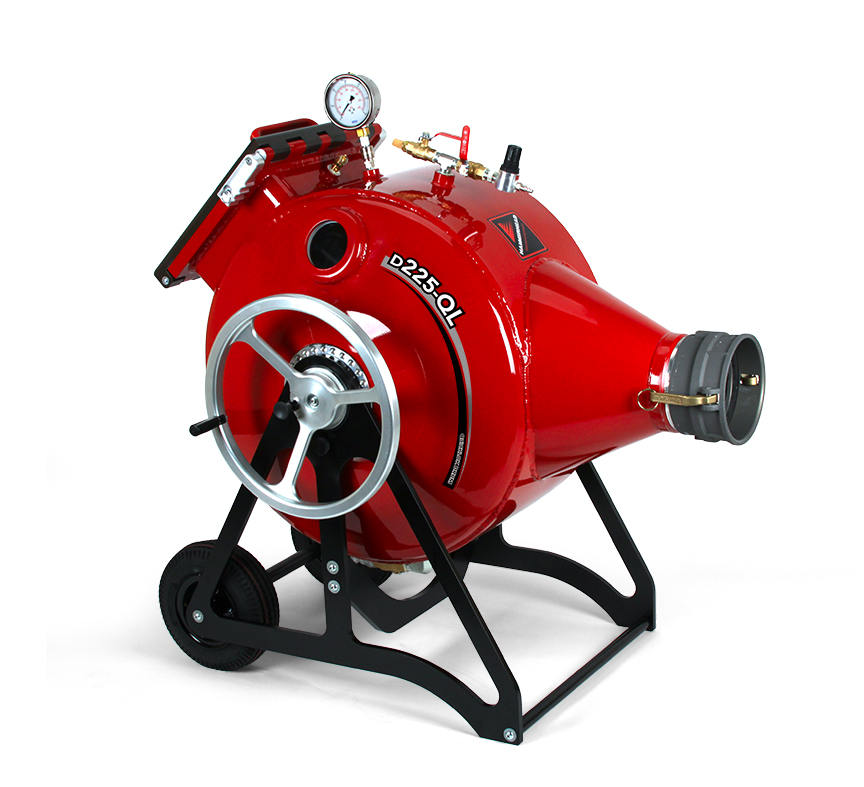

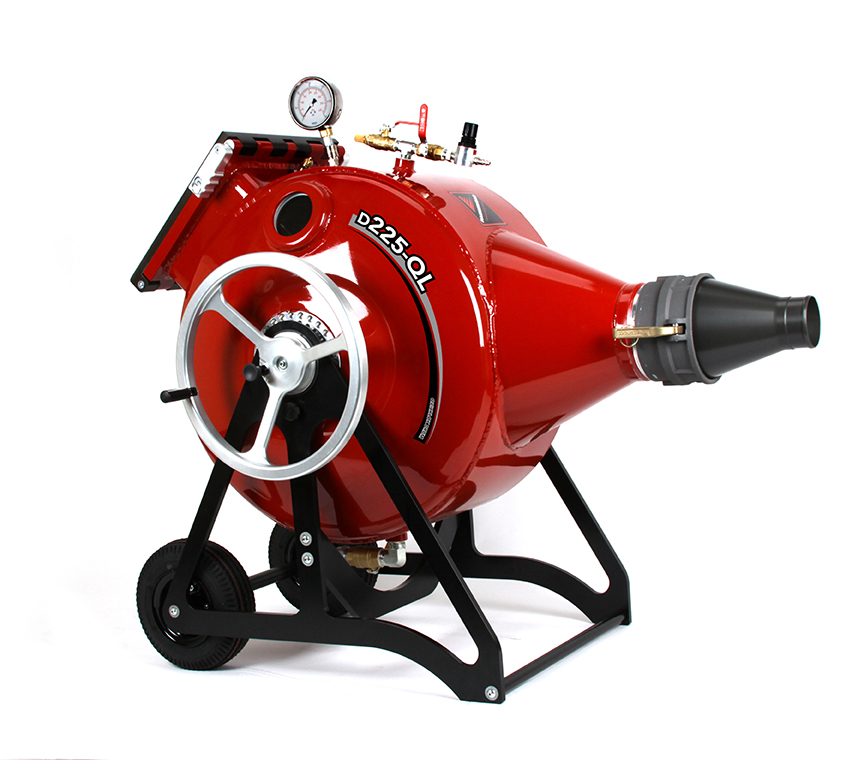

D225-QL QuickLok Inversion Drum
SKU: 922-1180$17,900.00
NEW! QuickLok CIPP Inversion Drums
D225-QL FEATURES:
-

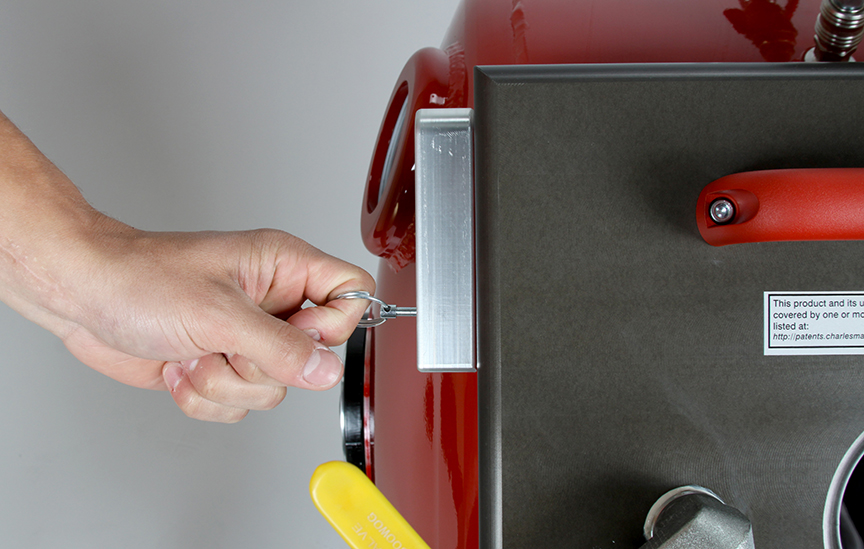

- QUICKLOK DOOR – The patent-pending QuickLok door has a simple single-lever lockdown that seals in seconds and provides visual confirmation its secure – no more hassling with multiple bolt-downs!
-

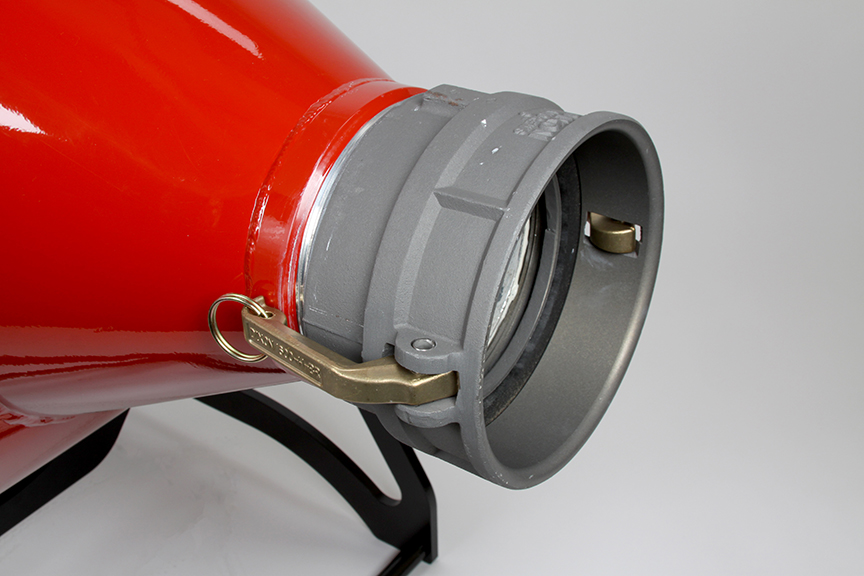

- CAM-LOK NOZZLE SYSTEM – QuickLok drums utilize our new nozzle system that uses just 2 adaptors + 6 nozzles to cover the entire 2″-8″ installation range – a feat that takes up to 18 separate nozzles with other systems! Save money and reduce the amount of stuff you have to haul around a job site! Plus, the adaptors can be used with nozzles you already own.
-
- AGILE & POWERFUL DESIGN – The all-aluminum construction is rated to 25 psi (1.7 bar) providing you the power to get through longer runs with multiple or difficult bends. QuickLok drums have 35% more capacity than competitive models while being up to 50% lighter for easy portability.
-

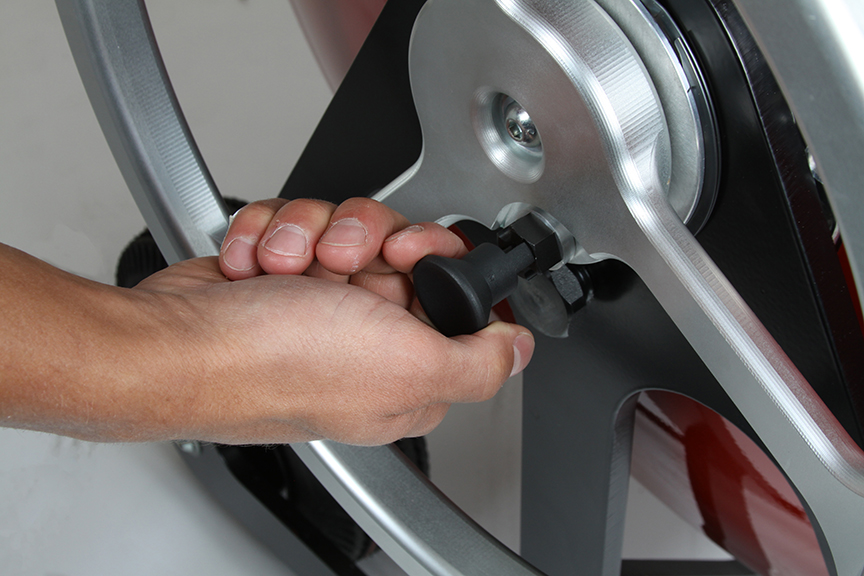

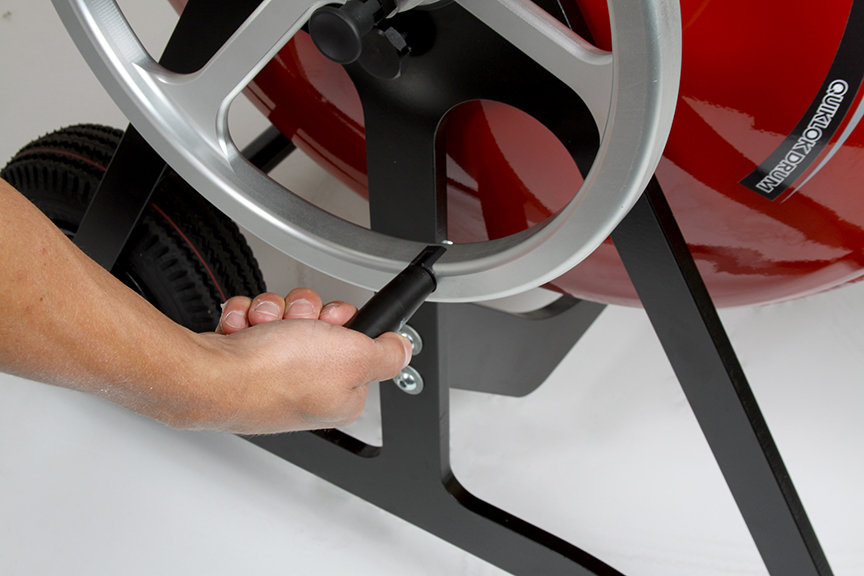

- INTERCHANGEABLE WHEEL – The spindle wheel can easily be removed and reattached to either side of the drum to suit job conditions or operator preference.
-
- GLASS VIEWING PORTS – QucikLok drums have 3 chemical- and scratch-resistant viewing ports proving more visibility into the drum to monitor the liner during operations.
SPECIFICATIONS | |
---|---|
Curing Methods | Air (Ambient), Steam, Hot Water, Bluelight® LED |
Maximum Pressure | 25 psi |
Weight | 162 lb |
DRUM CAPACITY | |
---|---|
2″ Liner | 300 ft |
3” Liner | 300 ft |
4” Liner | 225 ft |
6” Liner | 140 ft |
8” Liner | 110 ft |
QuickLok CIPP Inversion Drums are available in 2 sizes; for a smaller capacity, check out the D125-QL
CONTACT US OR CALL 800.331.6653 FOR MORE INFORMATION
*This product does not qualify for free shipping
QuickLok Drums Product LiteratureQuickLok Drums Operator’s Manual
